Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine

Product Categories

Jiangxi Linxing Diamond Tools Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine

Name: Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine
Brand: LINSING
Price: 28 USD

Wholesale Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine from china suppliers

Applicable Industries : Energy & Mining, Other, Stone Industry

Showroom Location : None

Condition : New

Type : Stone Grinding Machine

Use : Stone slab surface processing

Production Capacity : 500-1000m2/day

Place of Origin : Fujian, China

Brand Name : LINSING

Voltage : 380V

Power : 47KW

Dimension(L*W*H) : 5200*2700*2300mm

Weight : 5500 kg

Warranty : 1 Year

Key Selling Points : High-accuracy

Cutting thickness (max) : 100mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : Best selling

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Product name : Bush hammering machine

Keyword : litchi surface grinding machine

Function : Grinding

Usage : Tile Slabs

Application : Stone Marble Granite Quartz Sandstone

Control system : PLC(imported Brand)

Feature : High Efficiency

Color : Customised

Working area : 3000*1200mm

Water consumption : 8m3/h

Packaging Details : 1) Covered by plastic film wholely.
2) Packed in plywood cartons for spare parts.
3) Locked with steel ropes for anti-skid suitable for shipment by container.

Port : Xiamen/Shenzhen/Guangzhou/Shanghai/Ningbio

Supply Ability : 25 Set/Sets per Month

Price : $28,000.00/sets 1-2 sets

Contact Now

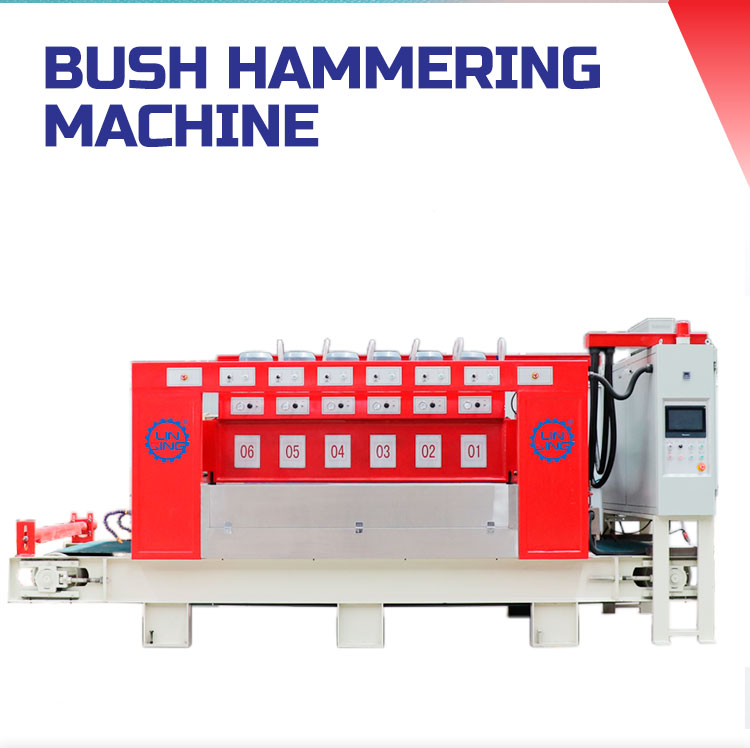

Full-Automatic Bush Hammering Machine

Full automatic Bush Hammering Machine with 6/8-head is your ideal machine to process litchi surface with high production, easy operation and perfect result. The head is adjusted automatically with same depth, lower cost and lower breakage rate. Different size, irregular shape or thin slab with 10mm are all acceptable to process litchi surface.

Product Features:
Full-automatic continuous litchi noodle mill, based on the principle of continuous walking, through the improvement of grinding head and program conversion, becomes a new type of continuous litchi noodle machine. The operation control system adopts PLC terminal control, and the parameter setting is carried out through the LCD touch screen. Grinding and polishing adopts pneumatic control, and its pressure is adjustable within the set value. This litchi noodle machine can automatically identify the thickness of the plate, the processing process is safe, the processing effect is uniform, the plate is not easy to break, and it saves labor.

1. The automatic litchi surface bush hammering machine with 6-heads or 8-heads is your ideal machine to process litchi surface with high production, easy operation and perfect result.
2. The head is adjusted automatically with same depth, lower cost and lower breakage rate.
3. Different size, irregular shape or thin slab with 10mm are all acceptable to process litchi surface.
Product Specifications:

Type	Unit	LXLZ-6	LXLZ-8
Head number	pcs	6	8
Main motor power	kw	5.5	5.5
Total power	kw	36	47
Mill diameter	mm	200	200
Grinding plate width	mm	1200	1200
Grinding plate thickness	mm	10-100	10-100
Beam swing speed	m/min	3-35	3-35
Into the plate velocity	m/min	1-4	1-4
Cooling water pressure	mpa	0.1-0.5	0.1-0.5
Water consumption	m³/h	6	8
Gas supply pressure	mpa	0.8	0.8
Overall dimensions(LWH)	mm	4500×2700×2300	5200×2700×2300
Weight	kg	4000	5500

Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine

Grinding Function PLC Automatic Continuous Granite Marble Stone Bush Hammering Machine Images
